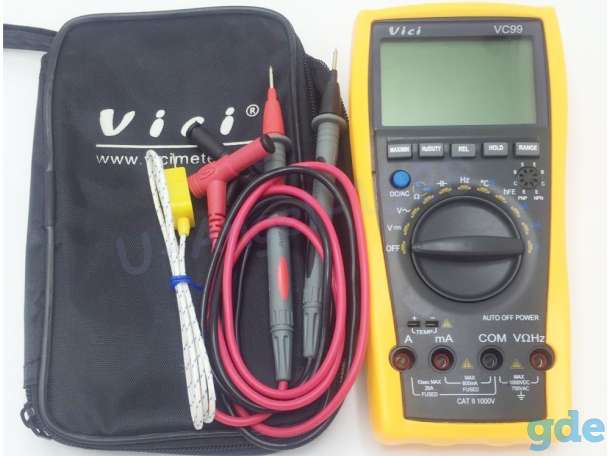

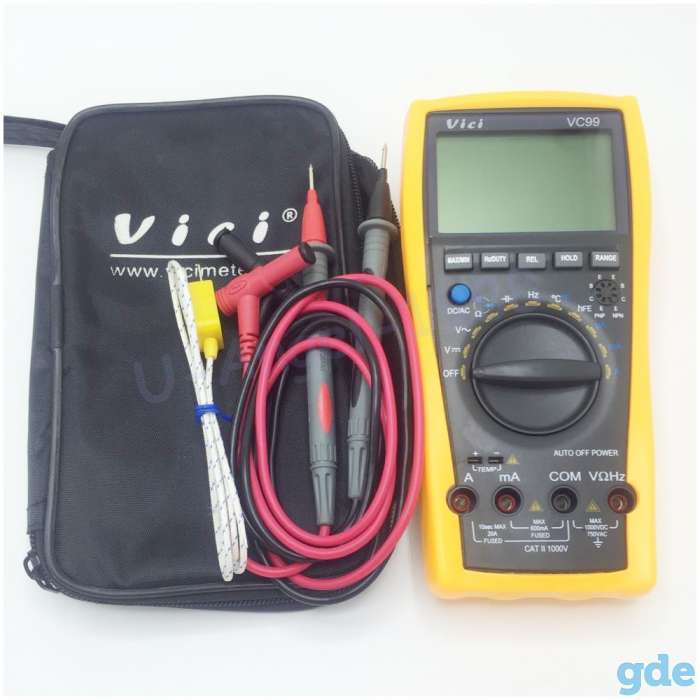

Автомат, большой дисплей, 4 разряда цифр, дополнительные щупы типо "крокодил" в ПОДАРОК. Толковый приборчик нужно сказать. Пишите на Viber.
Basic function Range Basic accuracy
DCV 600mV/6V/60V/600V/1000V ±(0.5%+4)
ACV 6V/60/600/1000V ±(0.8%+6)
DCA 600uA/6000uA/60mA/600mA/6A/20A ±(0.8%+3)
ACA 600uA/6000uA/60mA/600mA/6A/20A ±(1.5%+10)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+5)
Capacitance 40nF/ 400nF/4uF/40uF/400uF/2000uF ±(3.5%+8)
Frequency 100Hz/1kHz/10kHz/100kHz/1MHz/60MHz ±(0.5%+4)
Centigrade temperature -40°C~1000°C ±(0.75%+3)
0°F~1832°F ±(1.2%+3)
Special function VC99
Diode test √
hFE test √
Continuity test Approx. less than 30Ω±10Ω
Low battery indication Approx less than 2.4V
Duty cycle measuring √
Data hold √
Auto power off Approx.15minutes
Analog bar √
Function protect √
Input impendence 10MΩ
Sampling rate 3times/s
AC frequency resp
onse 40-400Hz
Operation way Manual or auto range
Max. display 6000
LCD size 65x41mm
Battery 3V AAA×2
Power dissipation Quiescent current approx. 2mA General characteristic
Color Body : dark grey, holster : orange
Weight 290g(including battery)
Meter size 185 x 93 x 35mm
Standard accessory Test leads, English manual, TP01 temperature probe, Battery
Packing English Retail Gift box
